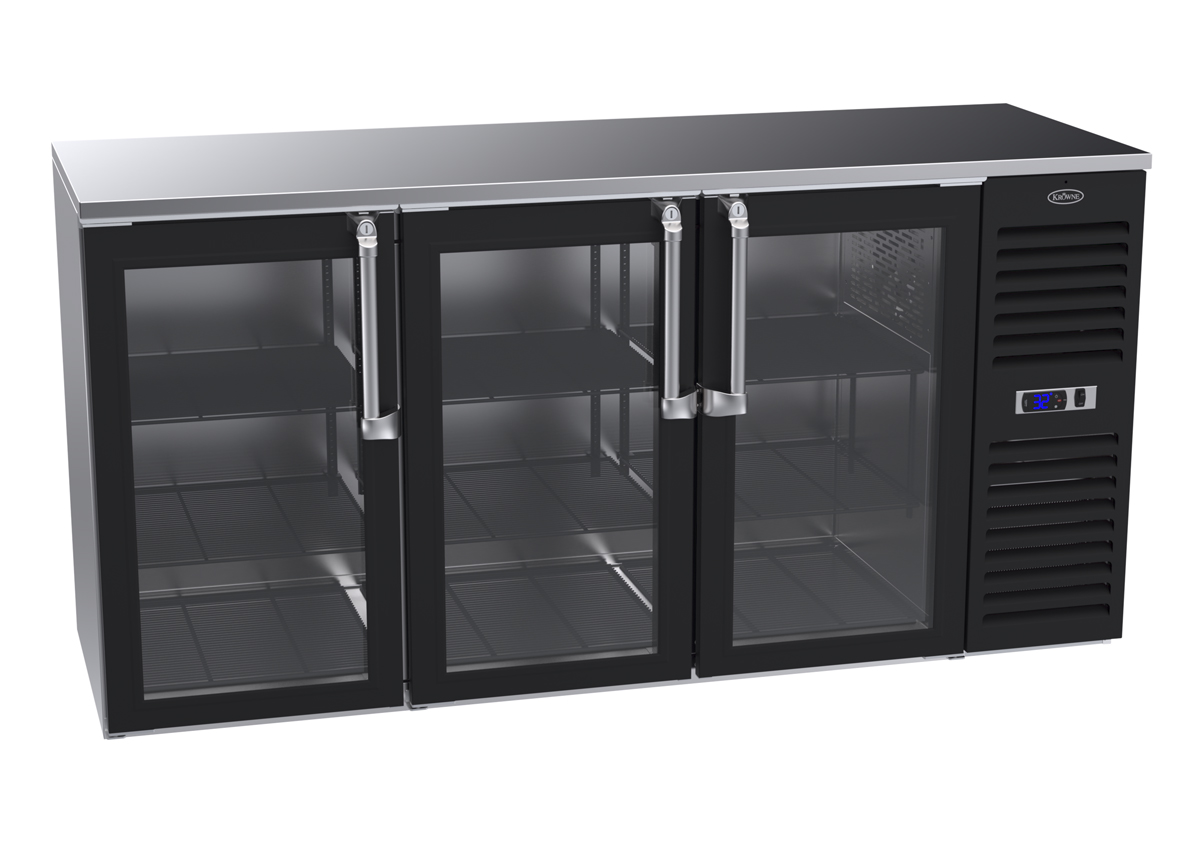

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Glass with Black Vinyl Doors, Stainless Steel Top

MODEL NS72R-GSS

LIST PRICE $13863.00

35"H without optional 1" stainless steel top, (36"H with top)
24" front to back depth without optional 1" stainless steel top (25" with top)
Heavy duty self-closing 18"W space saving doors
Built-in cool white LED lighting (7000K)
Stainless steel handles with built-in locks
All stainless steel coved corner interior
Digital thermostat
DynamicChill 360° technology
Heated mullion to minimize condensation
Standard operating range of 30° -40° F (set at 35° F) unless specified otherwise
NSF epoxy coated durable shelves (one bottom and two adjustable shelves per door)
Pre-drilled bottom for optional legs or casters (uses 1/4-20 self tapping 1/2"L screw)
R290 hydrocarbon refrigerant
Eco-friendly refrigerant and insulation
Approved for NSF 7 open food storage

Built-in cool white LED lighting (7000K)
Stainless steel handles with built-in locks
All stainless steel coved corner interior
Digital thermostat
DynamicChill 360° technology
Heated mullion to minimize condensation
Standard operating range of 30° -40° F (set at 35° F) unless specified otherwise
NSF epoxy coated durable shelves (one bottom and two adjustable shelves per door)
Pre-drilled bottom for optional legs or casters (uses 1/4-20 self tapping 1/2"L screw)
R290 hydrocarbon refrigerant
Eco-friendly refrigerant and insulation
Approved for NSF 7 open food storage

FIND A DISTRIBUTOR

CONFIGURE ON FRIDGEFLEX

MADE IN THE USA

PREMIUM STAINLESS STEEL CONSTRUCTION

FREE 3D/AR LAYOUT & DESIGN

COMPRESSOR WARRANTY

AVAILABLE IN DIFFERENT SIZES

INNOVATIVE EQUIPMENT DESIGNS

THOUSANDS OF OPTIONS

CONFIGURE ON FRIDGEFLEX

MADE IN THE USA

PREMIUM STAINLESS STEEL CONSTRUCTION

FREE 3D/AR LAYOUT & DESIGN

COMPRESSOR WARRANTY

AVAILABLE IN DIFFERENT SIZES

INNOVATIVE EQUIPMENT DESIGNS

THOUSANDS OF OPTIONS

DOWNLOADS

Vinyl Wrap Literature

DOWNLOAD

Refrigeration Manual (fr-ca)

DOWNLOAD

Refrigeration Manual (en)

DOWNLOAD

SPEC (1.5)

DOWNLOAD

SPECIFICATIONS

Length	72"
Height	36"H
Depth	25"D
Door Finish	Glass with Black Vinyl
Interior Finish	Stainless steel interior with coved corners
Compressor	Right Side
Refrigerant	R290 Hydrocarbon
Operating Range	Standard 30°-40° F (Set at 35°F) unless specified
Amps	2.2
Electrical	115V, 1 Phase, 60 Hz. NEMA 5-15P Plug Configuration

CERTIFICATIONS

ETL	CSA C22.2#120:2013 Ed.4, UL 471:2010 Ed.10, NSF/ANSI 7:2021

WARRANTY

2 year parts and labor, 5 year compressor

WARRANTY INFO

ACCESSORIES / REPLACEMENT PARTS

BC-828

Refrigeration Door Handle - Full Kit

BC-553

Door Gasket for Narrow Doors

BC-698

Narrow Glass Door with Stainless Steel Frame

BC-697

Narrow Stainless Steel Door

BC-695

Narrow Glass Door with Black Vinyl Frame

BC-694

Narrow Black Vinyl Door

BC-817

Refrigeration Door Handle - Bottom

BC-816

Refrigeration Door Handle - Top

BC-135

4" Overall 3-1/2" x 3-1/2" Plate Casters for Refrigeration, 3" Wheels with Side Brakes, Set of 6

BC-133

3" Overall 3-1/2" x 3-1/2" Plate Casters for Refrigeration, 2" Wheels with Front Brakes, Set of 6

BC-131

2" Overall 3-1/2" x 3-1/2" Plate Casters for Refrigeration, 1" Wheels with Front Brakes, Set of 6

BS-172

72" Stainless Steel Front Kick Plate for Back Bar Coolers

BS-103

4" Legs for Back Bar Coolers, Set of 6

BS-101

6" Legs for Back Bar Coolers, Set of 6

BS-107

Right Side Kick Plate for Back Bar Coolers

BS-106

Left Side Kick Plate for Back Bar Coolers

BC-499

Shelf with Bottle Dividers for Back Bar Coolers - Narrow Doors (Center Door)

BC-137

5" Overall 3-1/2" x 3-1/2" Plate Casters for Refrigeration, 4" Wheels with Side Brakes, Set of 6

BC-485

Shelf with Bottle Dividers for Back Bar Coolers - Narrow Doors (Left or Right Door)

BC-139

6" Overall 3-1/2" x 3-1/2" Plate Casters for Refrigeration, 5" Wheels with Side Brakes, Set of 6

BS-501

Warm White 3500K LED Light (Less bright) for Back Bar Coolers

BS-500

Blue LED Light for Back Bar Coolers

RELATED PRODUCTS

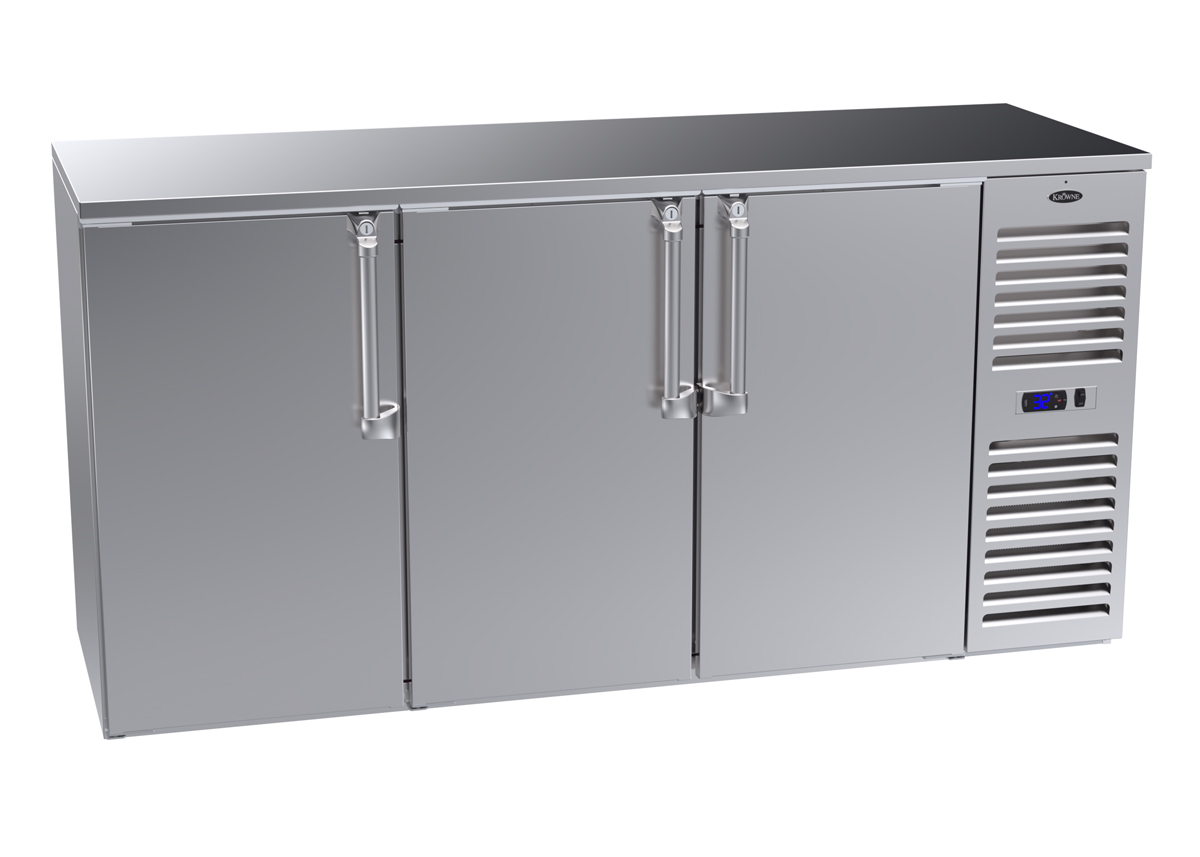

NS72R-SSS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Stainless Steel Doors, Stainless Steel Top

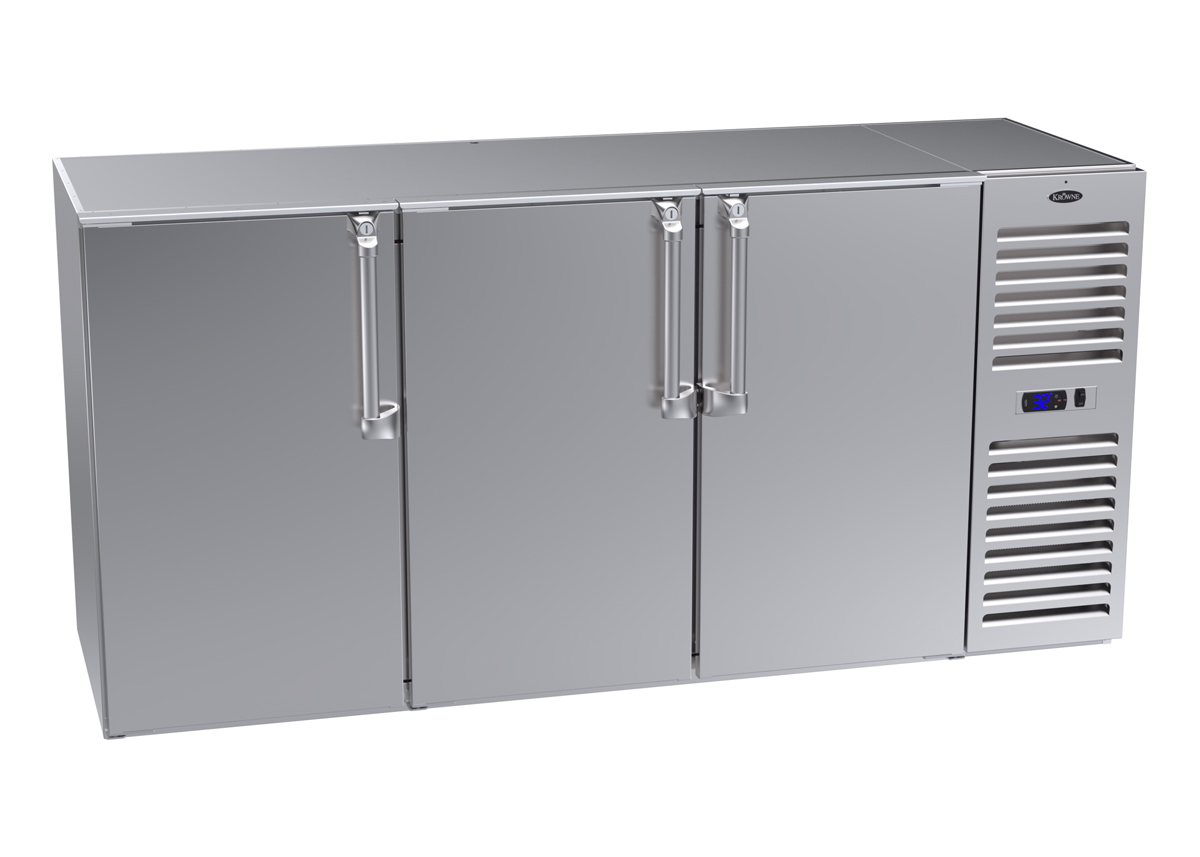

NS72R-SNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Stainless Steel Doors, Unfinished Top

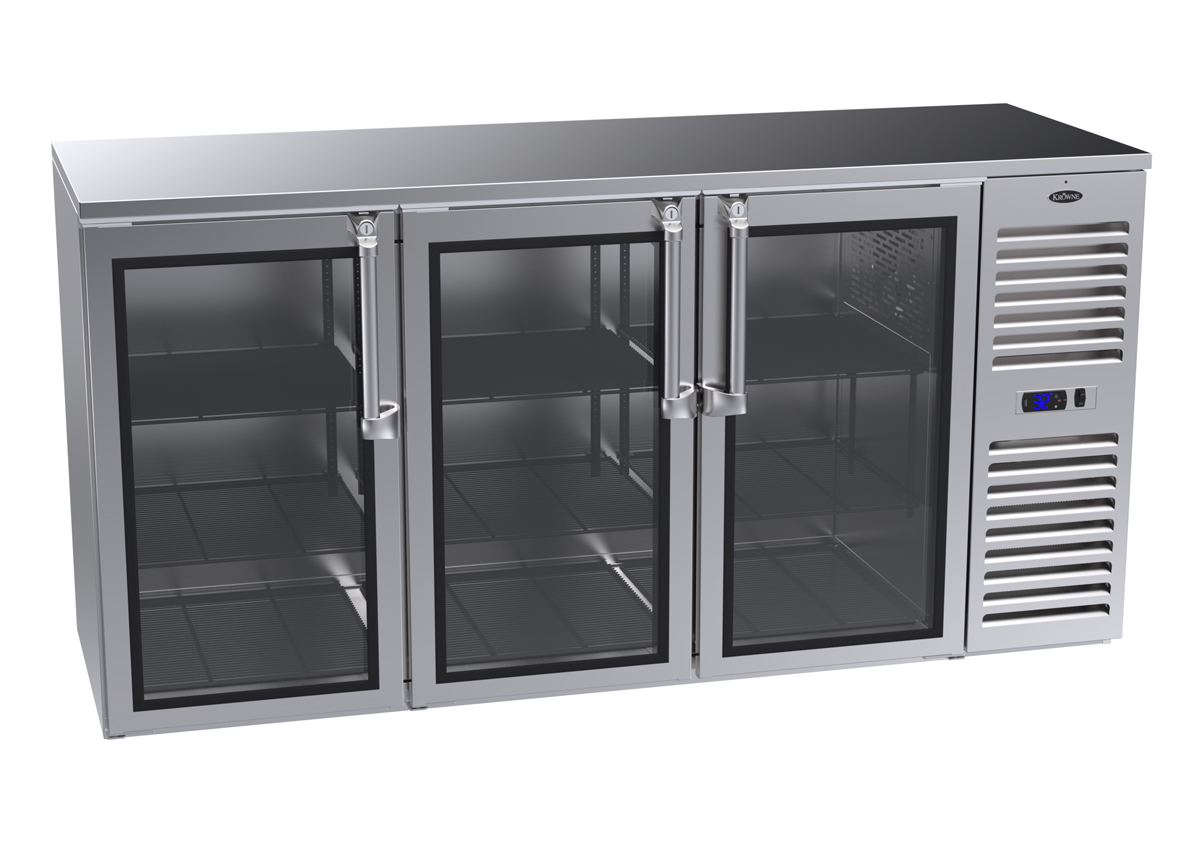

NS72R-KSS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Glass with Stainless Steel Doors, Stainless Steel Top

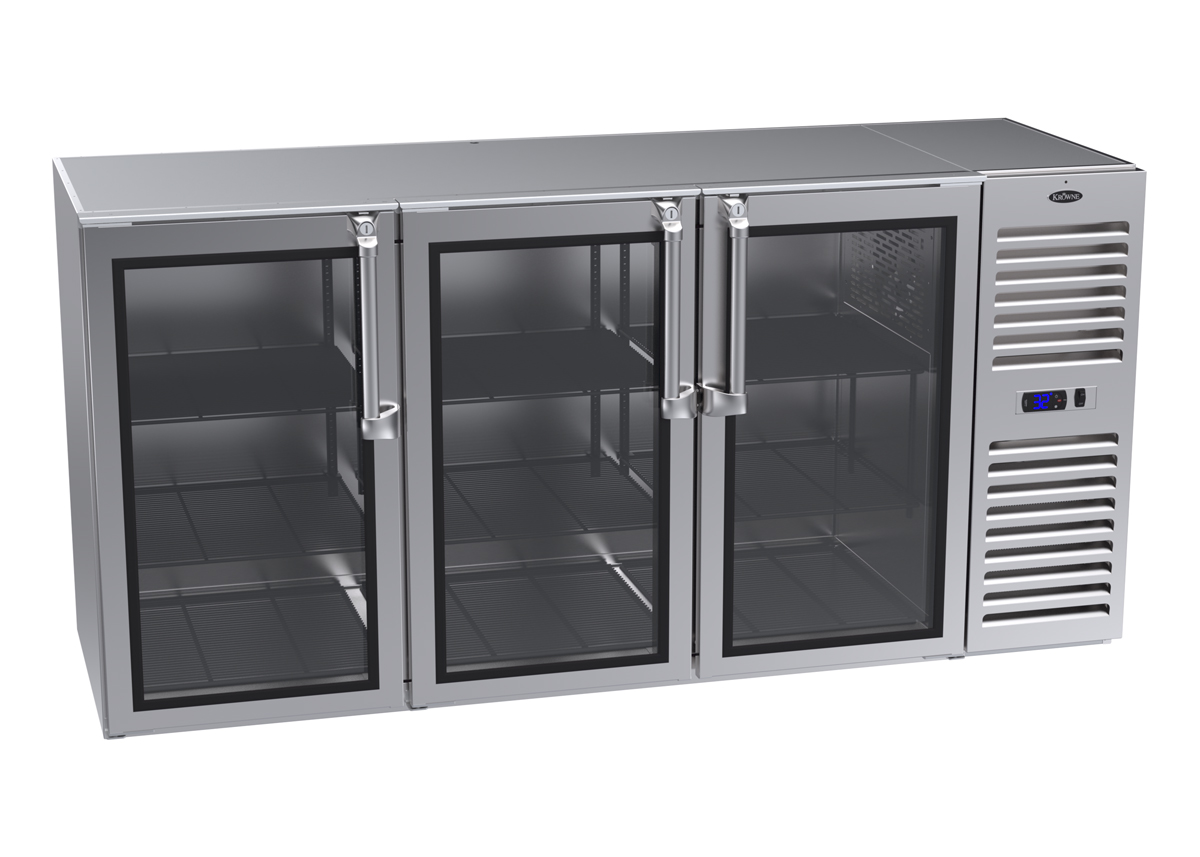

NS72R-KNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Glass with Stainless Steel Doors, Unfinished Top

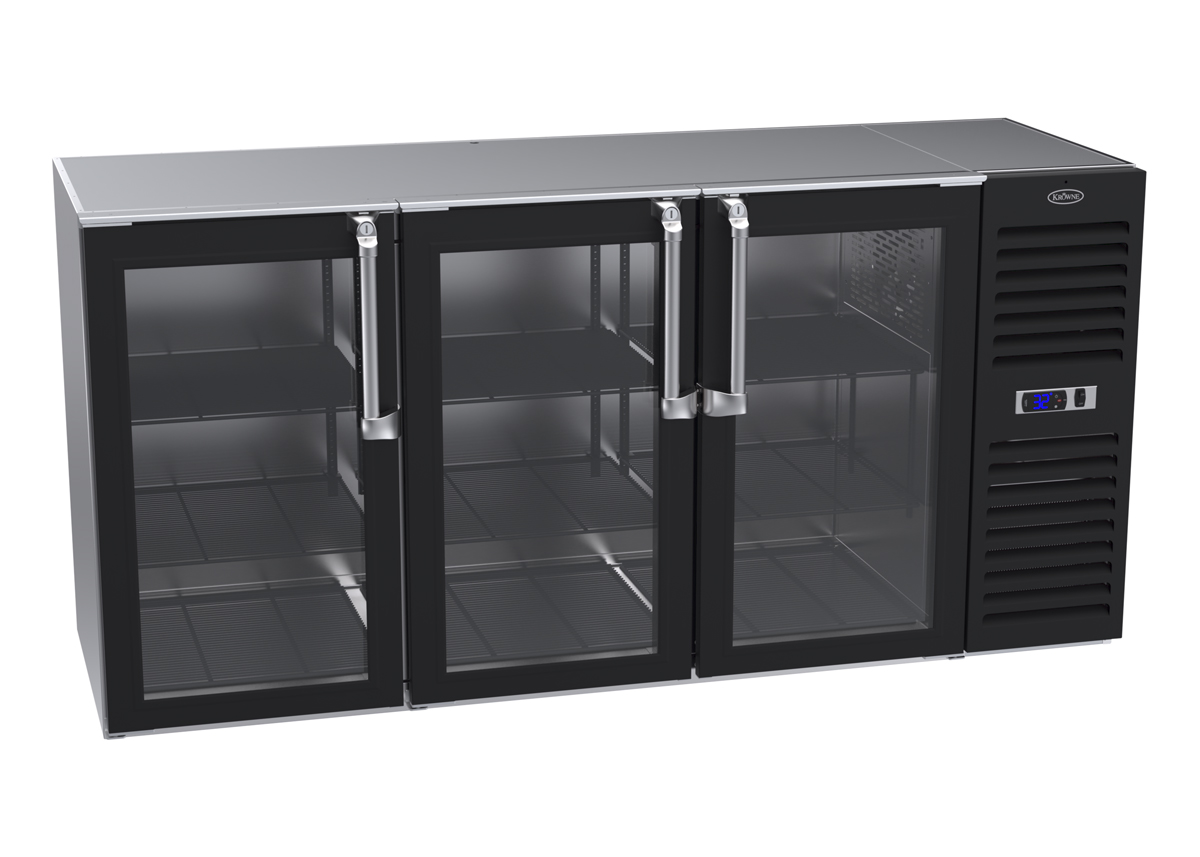

NS72R-GNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Glass with Black Vinyl Doors, Unfinished Top

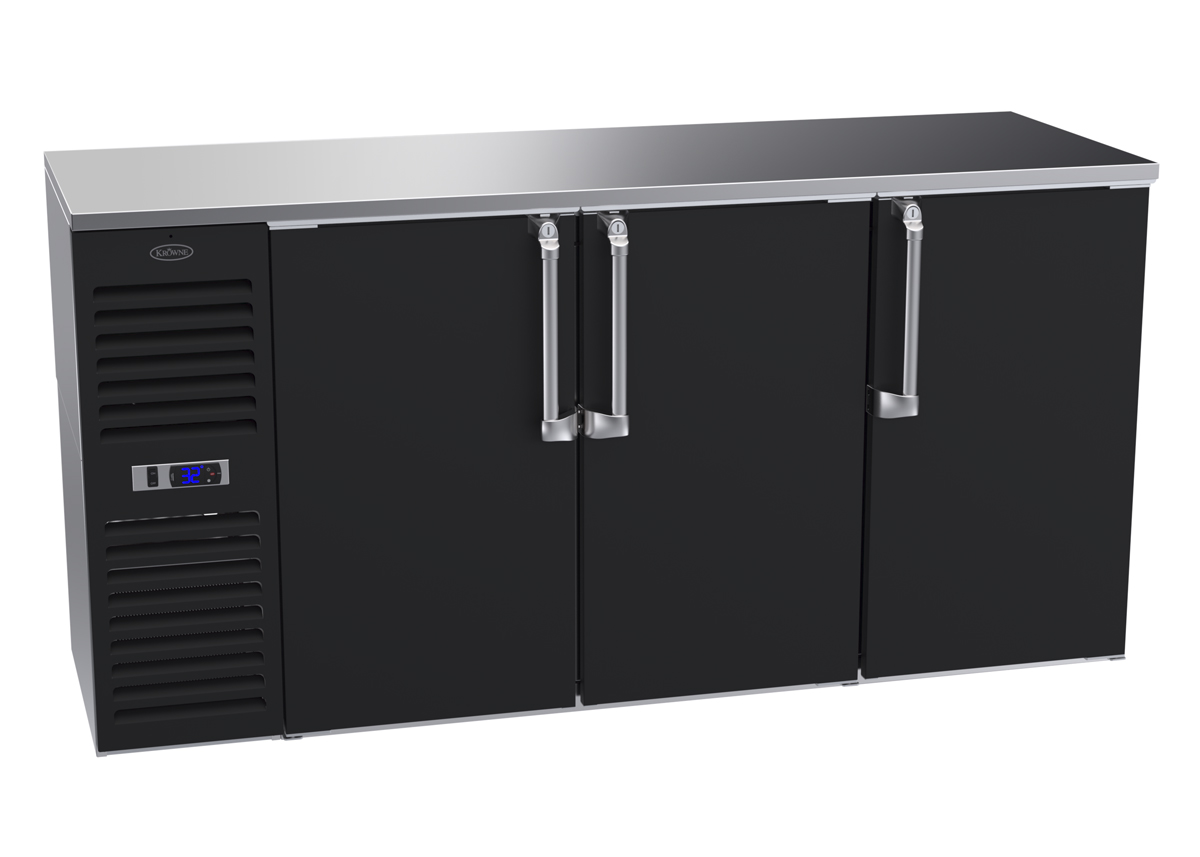

NS72L-BSS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Black Vinyl Doors, Stainless Steel Top

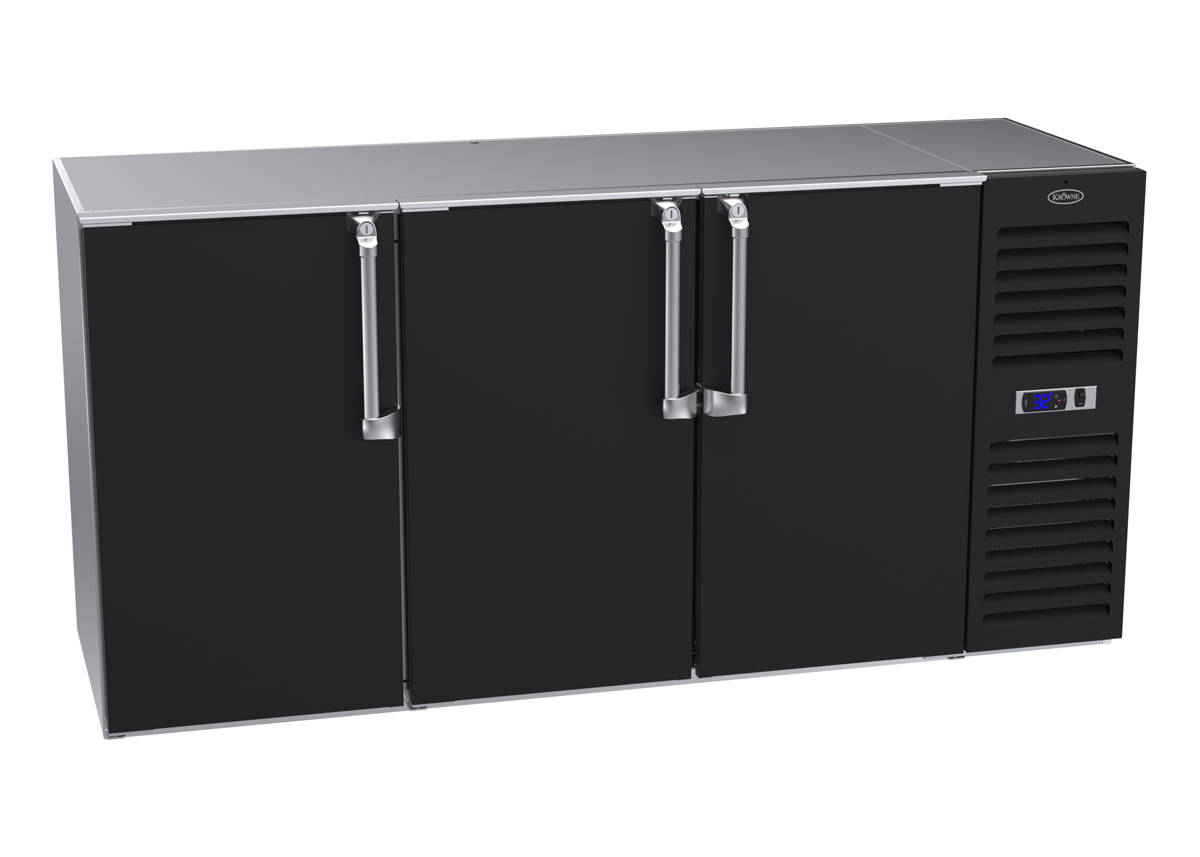

NS72R-BNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Right, Black Vinyl Doors, Unfinished Top

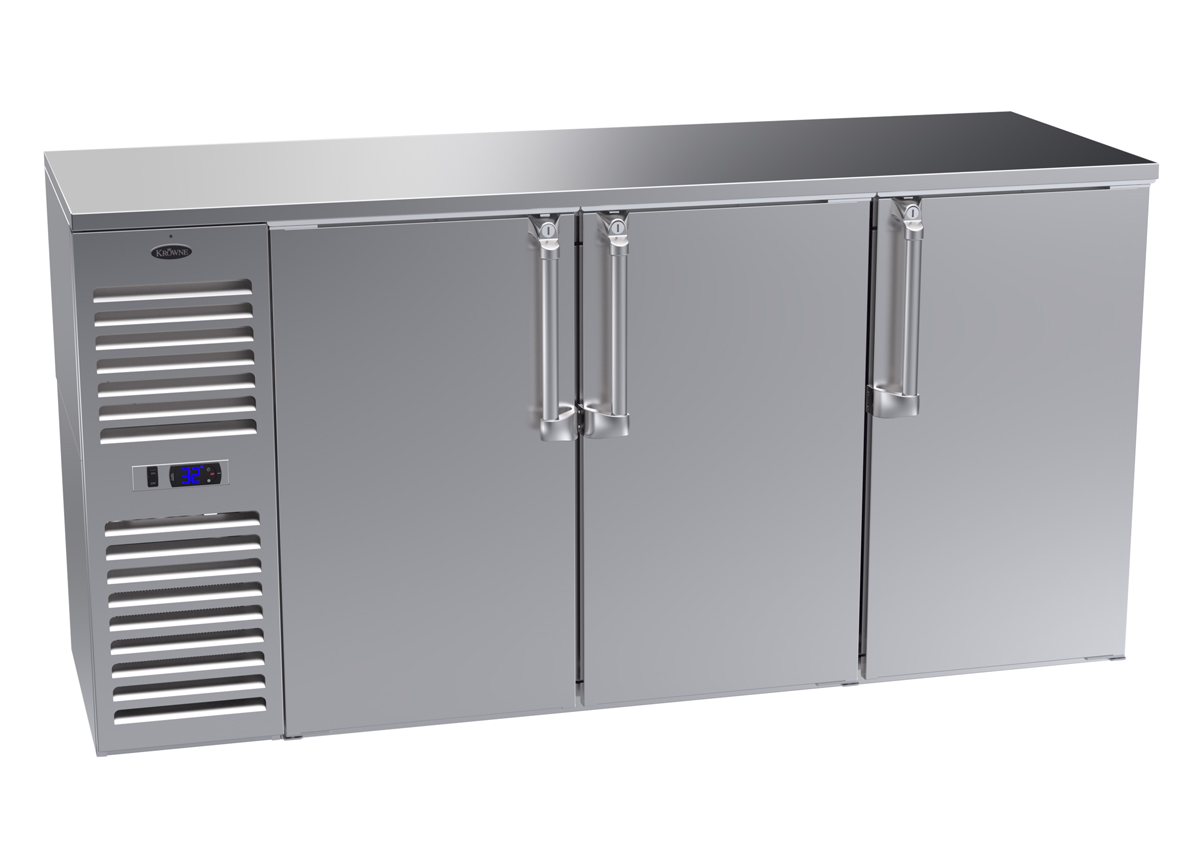

NS72L-SSS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Stainless Steel Doors, Stainless Steel Top

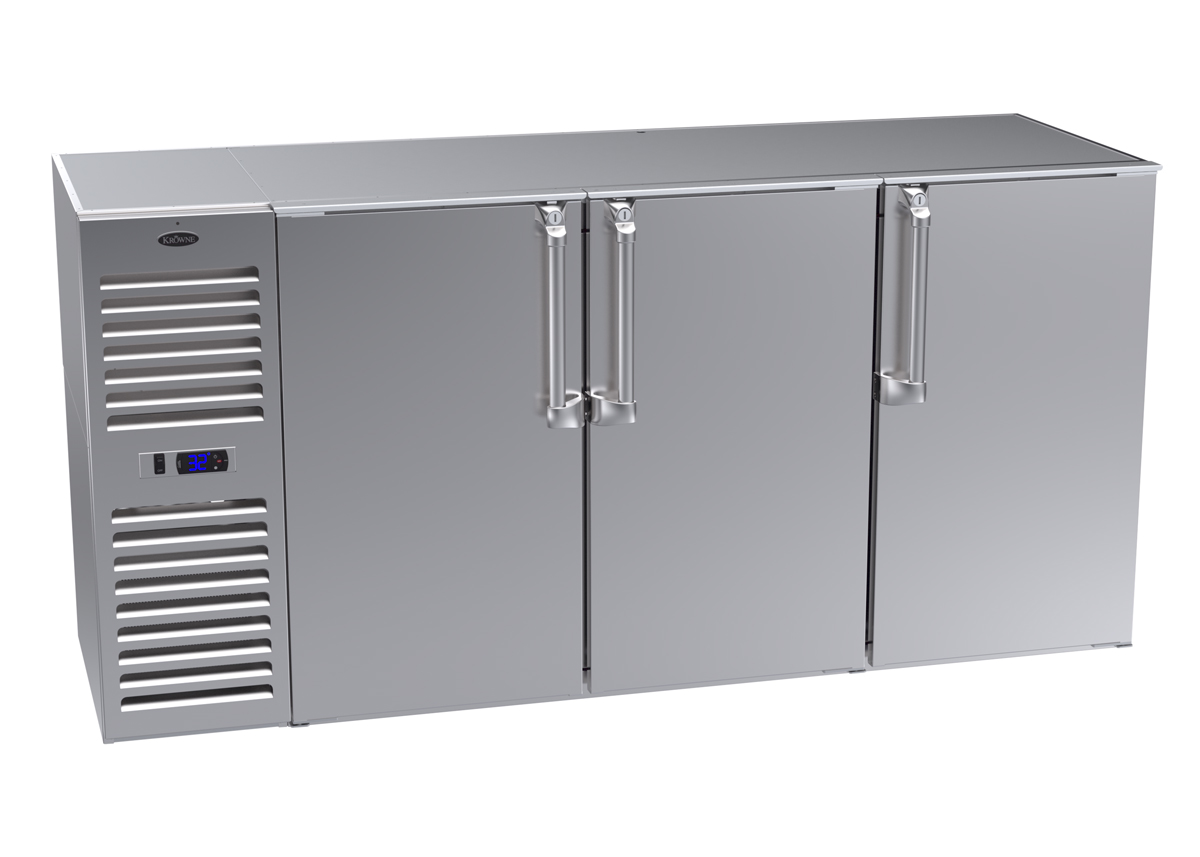

NS72L-SNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Stainless Steel Doors, Unfinished Top

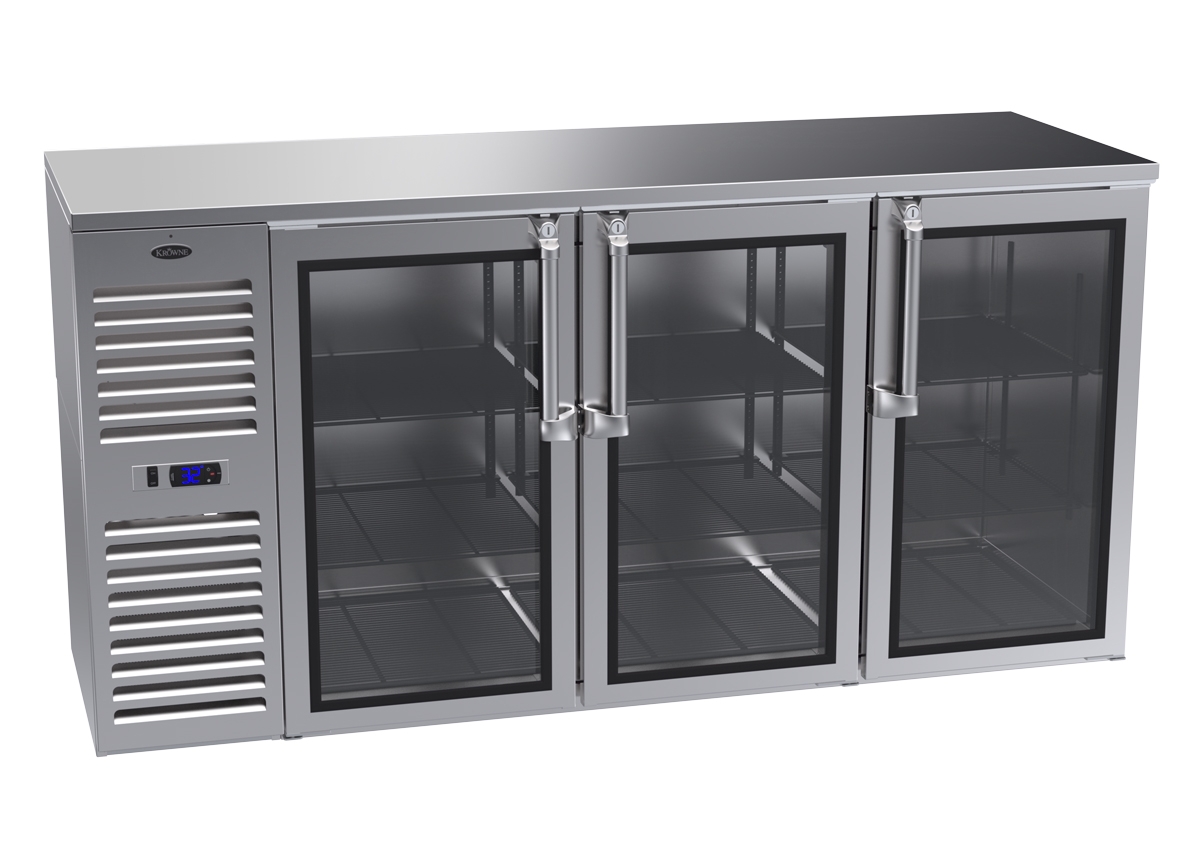

NS72L-KSS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Glass with Stainless Steel Doors, Stainless Steel Top

NS72L-KNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Glass with Stainless Steel Doors, Unfinished Top

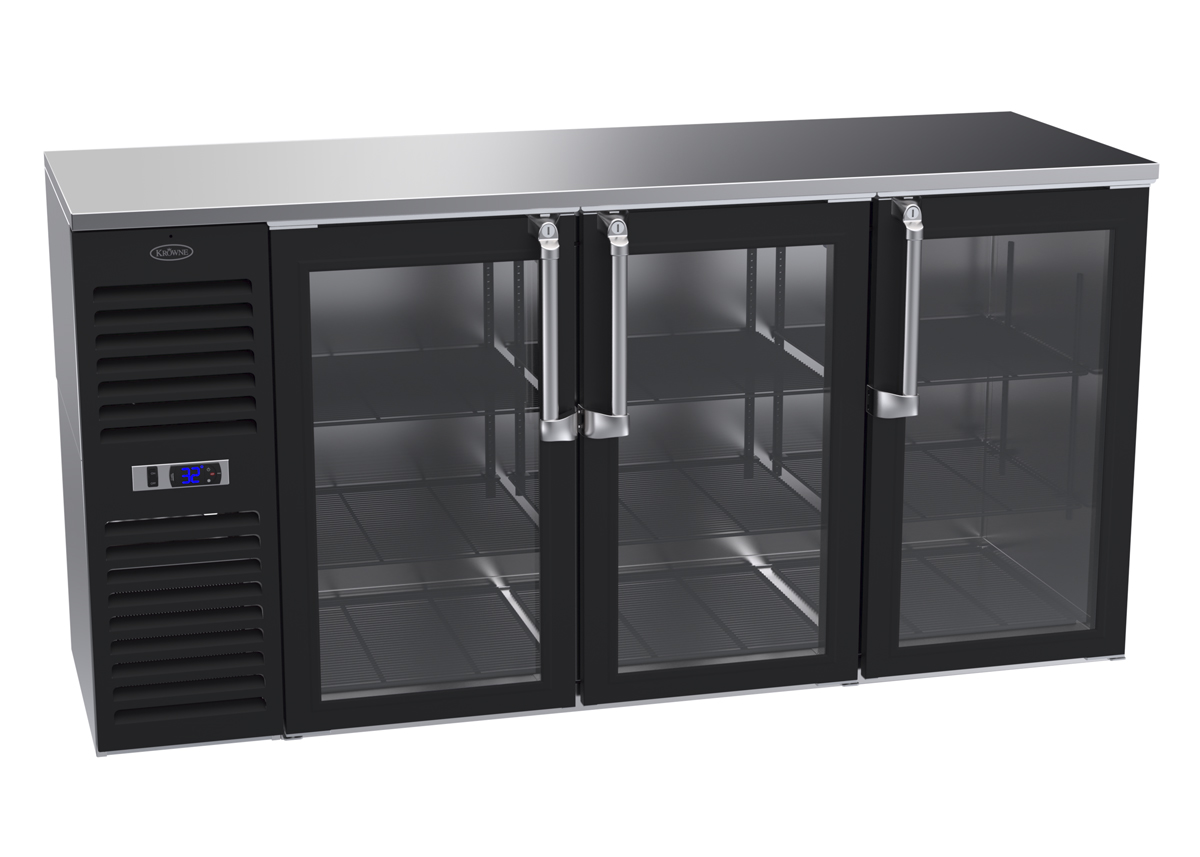

NS72L-GSS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Glass with Black Vinyl Doors, Stainless Steel Top

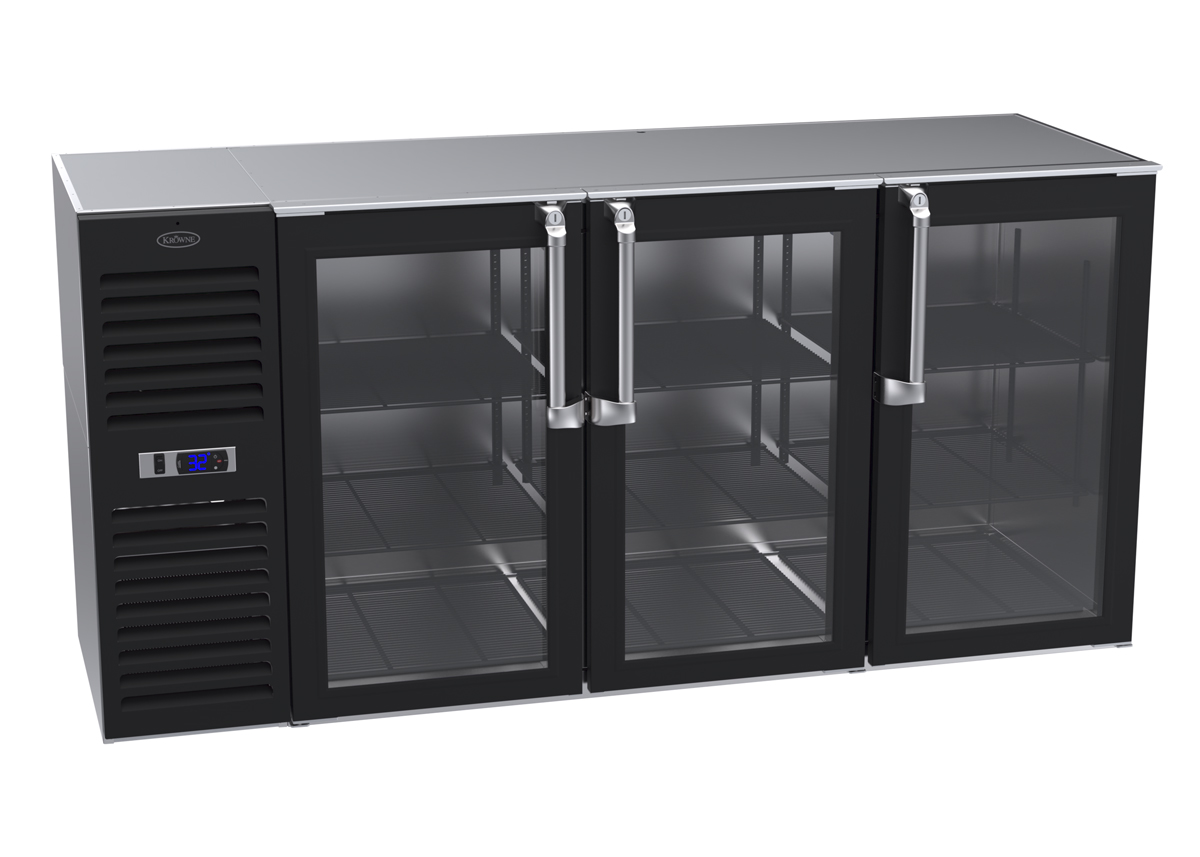

NS72L-GNS

72" Narrow Three-Door Self-Contained Back Bar Cooler - Compressor on Left, Glass with Black Vinyl Doors, Unfinished Top

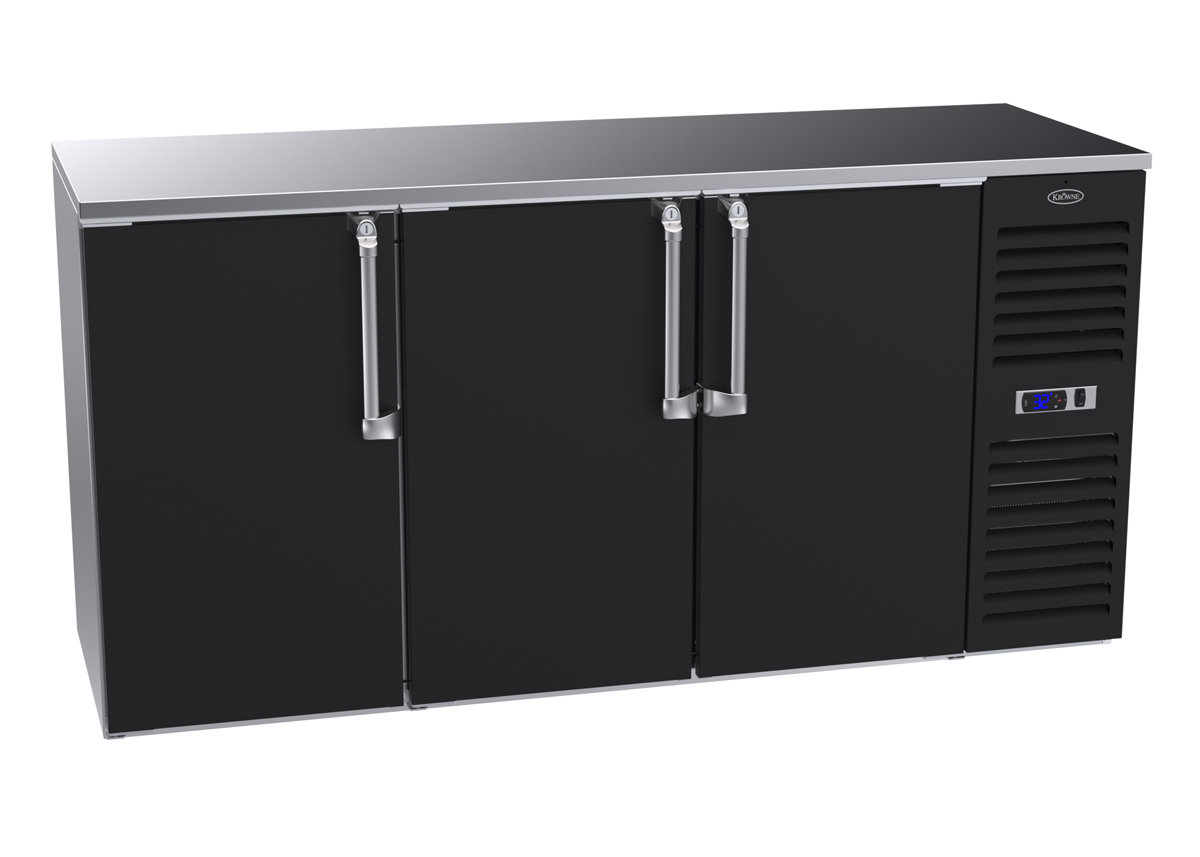

NS72R-BSS
